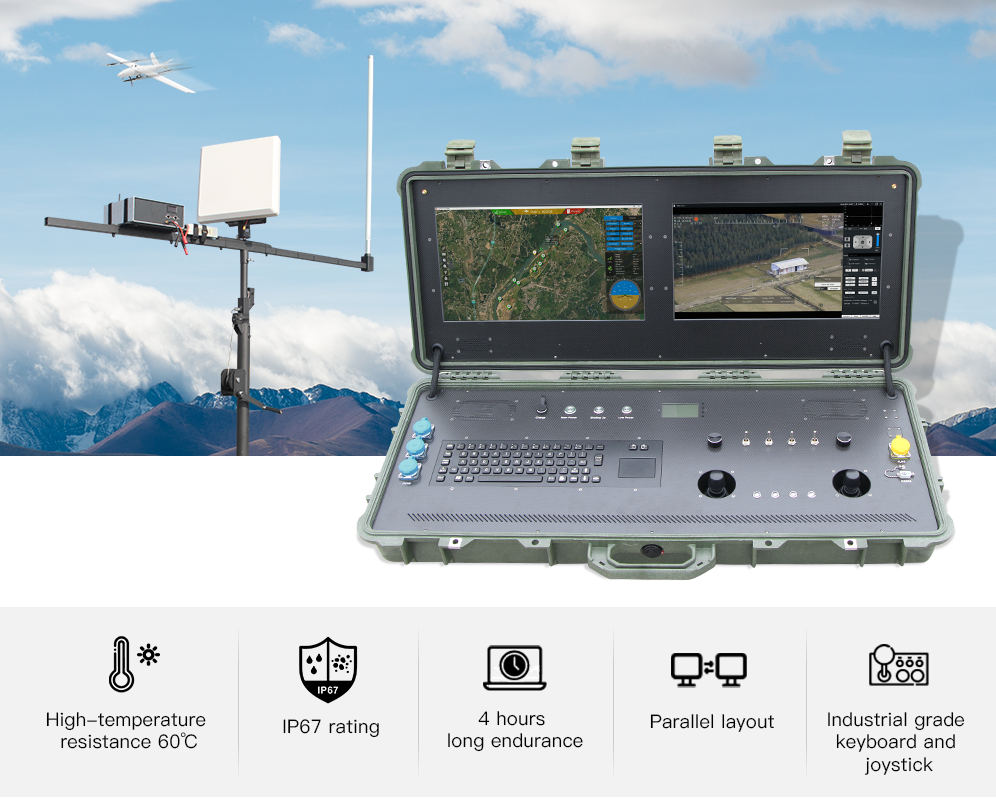

Product Overview
YANGDA ROCK-II stands as a robust and unwavering ground control station crafted for industrial-grade drones. When venturing into flight missions in rugged, wild terrains, ROCK-II emerges as the quintessential UAV GCS that offers unparalleled reliability.

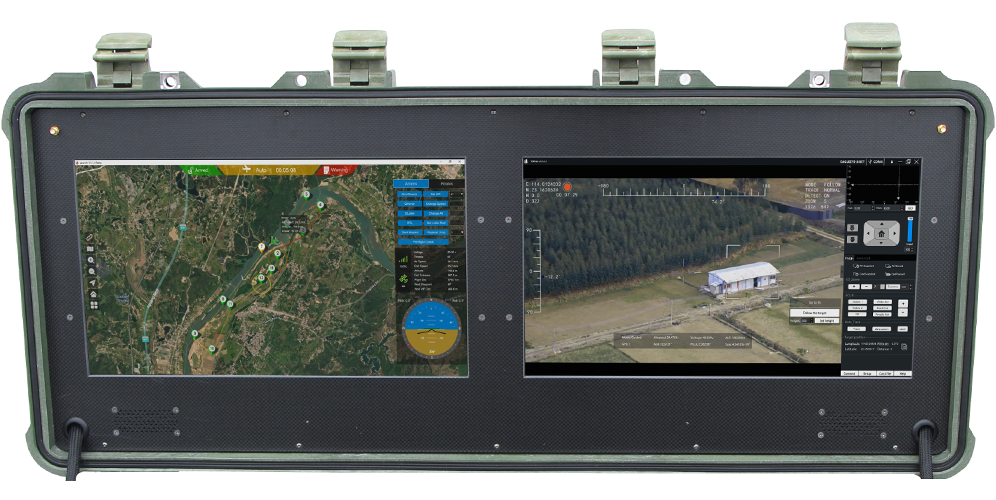

Dual screens
ROCK-II has two 17.3-inch screens with a remarkable 1000-nit brightness.
The left screen will be mainly used to display UAV flight data, and the right screen will be for live video streaming from a drone camera.

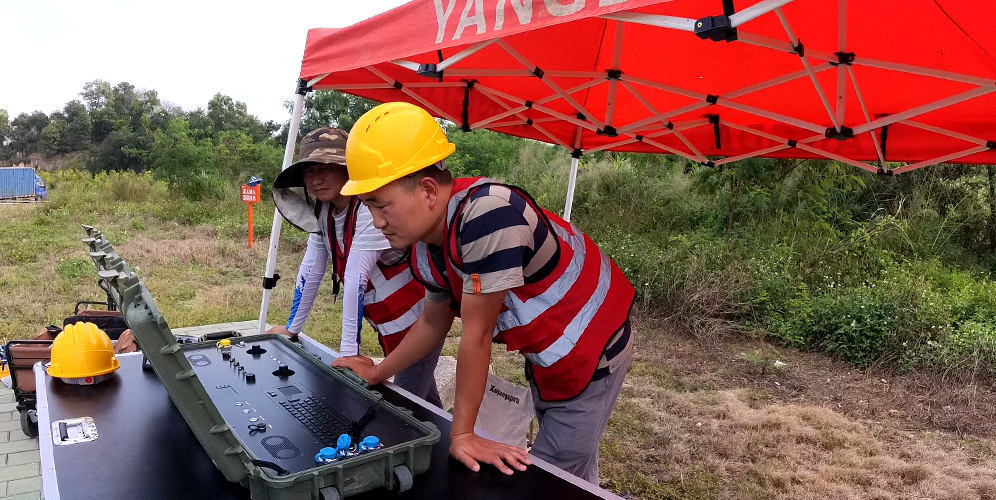

Parallel layout
A parallel layout that generously accommodates two operators standing side by side without any interference.
IP67 rating
ROCK-II drone ground station box is constructed with military-grade PVC composite materials, enabling it to have an IP67 protection level,
which ensures seamless operation in humid or dusty environments.

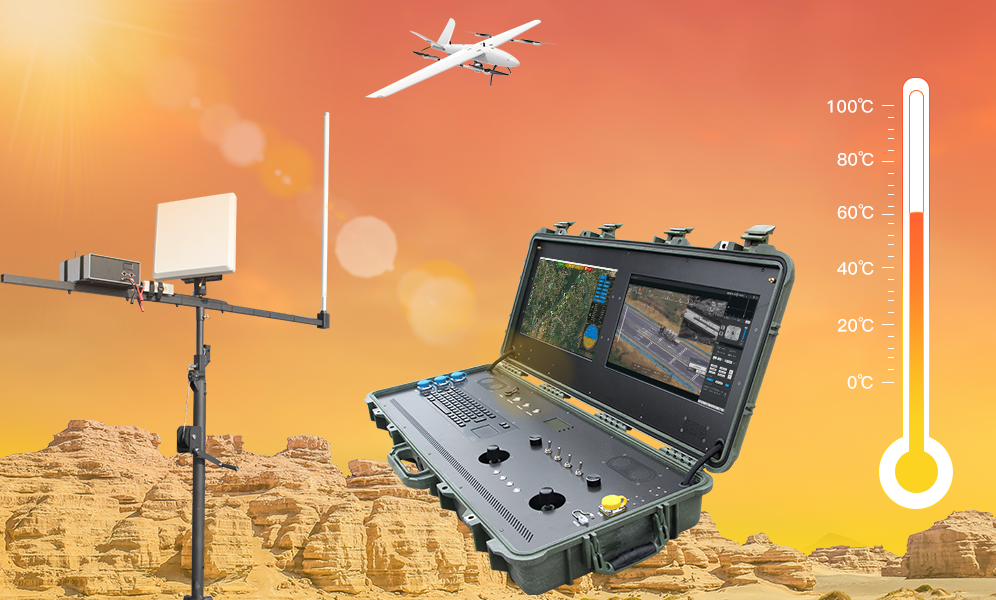

High-temperature resistance
ROCK-II industrial drone GCS is adopting anti-high temperature materials, making it capable of standing max 60℃ temperature.

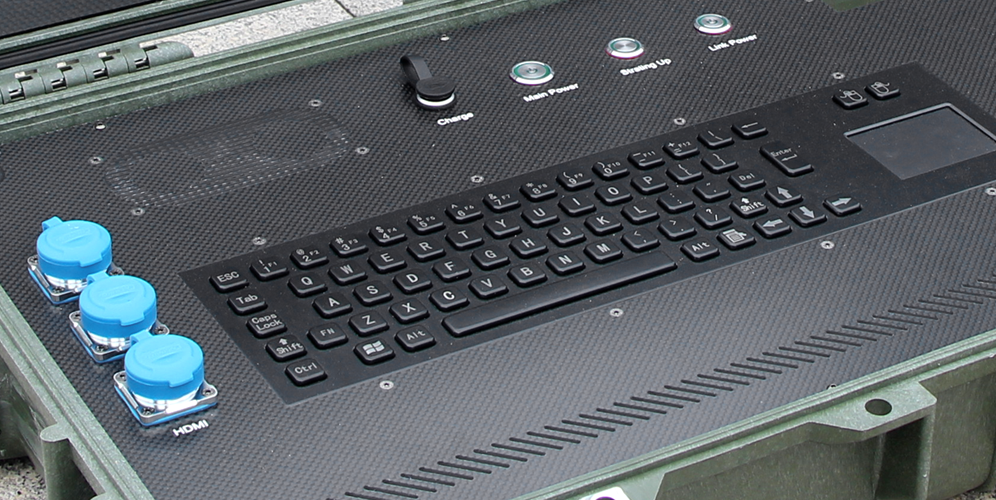

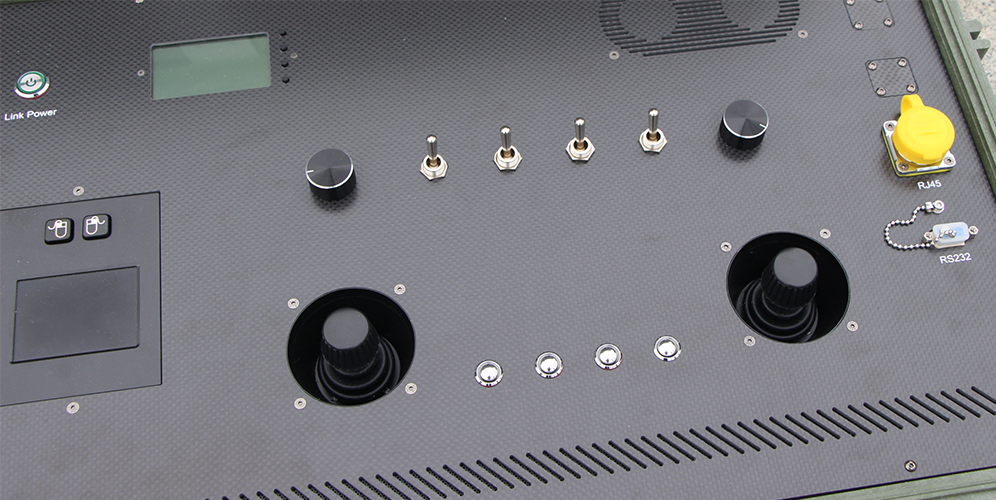

Industrial grade keyboard and joystick
The drone ground control station is using industrial explosion-proof keyboard and hall joysticks, giving you peace-of-mind performance.

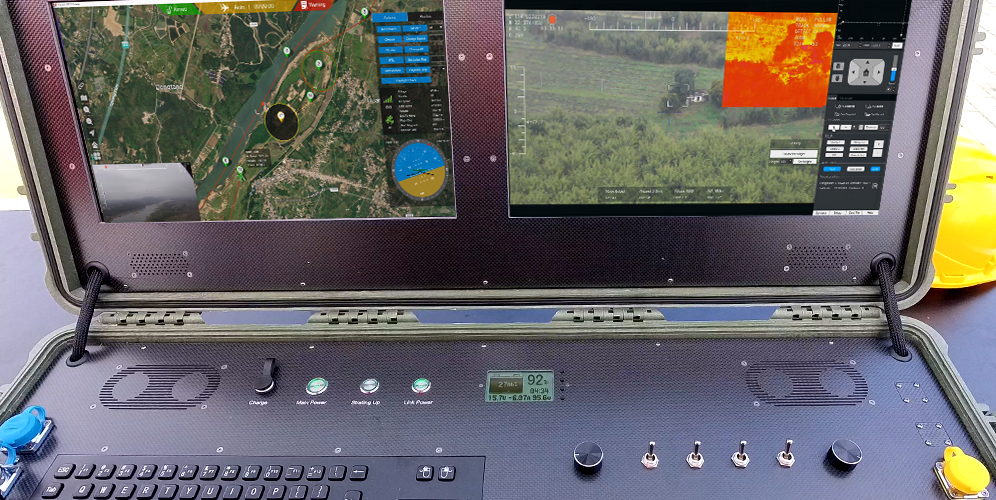

4 hours long endurance
The built-in battery supports 4-hour endurance. Furthermore, you can get the power for the ground station through one charger to have unlimited operation time.

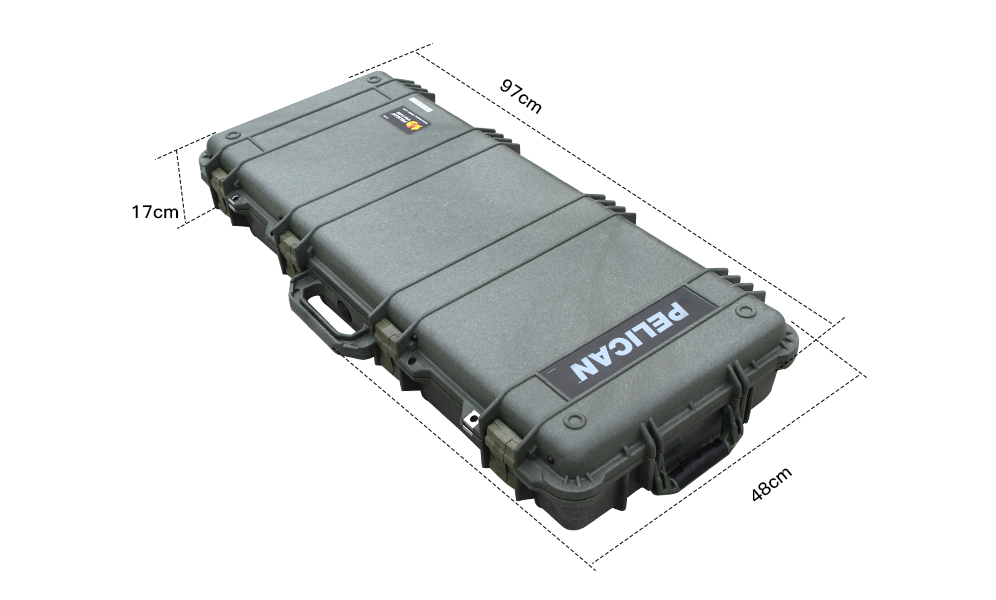

Dimension
| Ground station box | |
| Box type | Military-grade protection box |
| Size | 968mm x 406mm x 155mm |
| Overall weight | 20KG |
| Box material | PVC composites |
| Working temperature | -10°C ~ 60°C |
| Protection class | IP67 |
| Color | Army green |
| Computer specification | |
| Processor | I7-6700T |
| Operating system | Windows 10 |
| Memory | 8G |
| Hard disk | 256G SSD |
| Graphics | Intel HD Graphics 530 |
| Network card | 1000M |
| Dual screens | |
| Size | 17.3 Inch |
| Resolution | 1920*1080 |
| Screen ratio | 16:9 |
| Back-light type | LED |
| Max brightness | 1000 nit (Automatic sensing adjustment) |
| Input interface | HDMI (For extention purpose) |
| Operation panel | |
| Panel material | 3K carbon fiber sheet |
| Interface | USB*3, DC IN, HDMI, RJ45, RS232 |
| Feeders and interfaces | Support N and SMA interface |
| Interactive | Industrial mouse key set, joystick, button, lever |
| Switch parameters | Total power supply, power button, link power supply |
| Other equipment | Industrial cooling fans |
| Battery and power | |
| Power type | Built-in battery and external power supply |
| Display content | Voltage & current, left capacity, power consuption |
| Management system protection | Overcurrent protection, overvoltage protection, low voltage protection |
| Overcapacity protection, overpower protection | |
| Battery protection | Overcurrent protection, overtemperature protection |
| Overvoltage protection, low voltage protection | |
| Battery endurance | 4 hours |
