Product Overview
Storm Eye-20IE-MK combines advanced imaging and laser technology for superior performance in different applications. It features 4K UHD resolution and 20x optical zoom capability, powered by the high-performance Exmor R CMOS sensor for exceptional image quality. The thermal imaging lens offers a 35mm focal length, 640x512 resolution with 4x digital zoom, support for versatile imaging. Equipped with a 3KM radar rangefinder with an accuracy of ±2 meters, the camera provides precise distance measurement, while its 3-axis gimbal control ensures stable and smooth operation. Additionally, the camera is capable of AI-powered intelligent recognition for human and vehicles, allowing for automatic tracking of moving objects. When paired with Yangda’s UAVs, the camera enables “Fly by camera” functionality, enhancing operational flexibility. Storm Eye-20IE-MK is designed to deliver high-quality, stable, and precise video in dynamic environments, making it the perfect choice for applications in video monitoring, search and rescue, security and more.
4K UHD
Experience stunning clarity with our 4K daylight lens, featuring a Sony Exmor R CMOS sensor with 8.93 megapixels, auto-focus, and an impressive 20x optical zoom for unmatched detail and precision.
3KM rangefinder

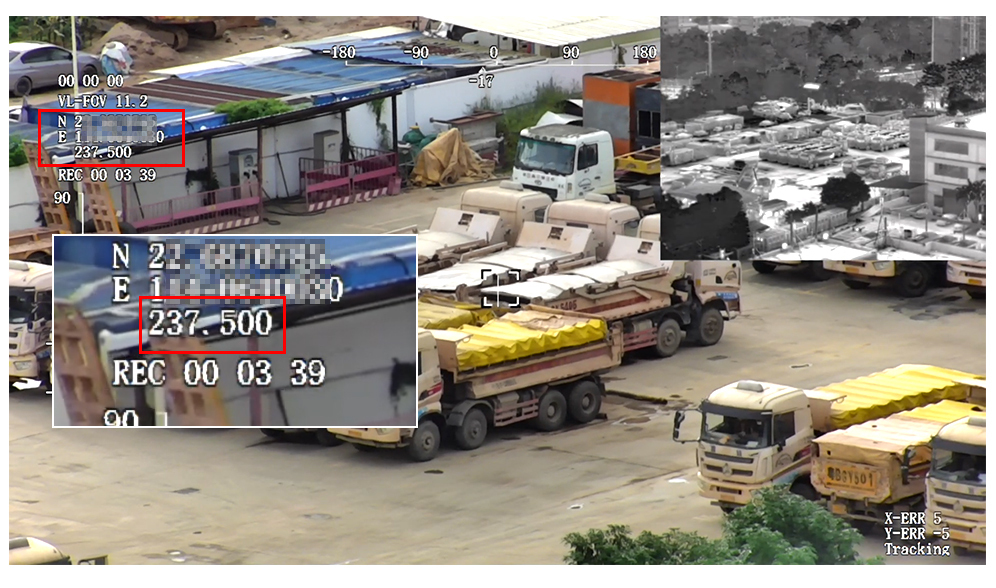

The advanced laser rangefinder utilizes a cutting-edge location calculating algorithm to accurately measure distances up to 3000 meters and determine the longitude and latitude of the target. With a 1535nm laser wavelength and measurement accuracy within 2 meters, this system can reliably detect targets such as vehicles and humans even in challenging conditions. This feature is essential for drone patrol and inspection applications, allowing operators to easily pinpoint and share suspicious target coordinates with supervisors. Additionally, drones can autonomously track the target based on the provided coordinates, ensuring continuous surveillance and precise monitoring in real-time.

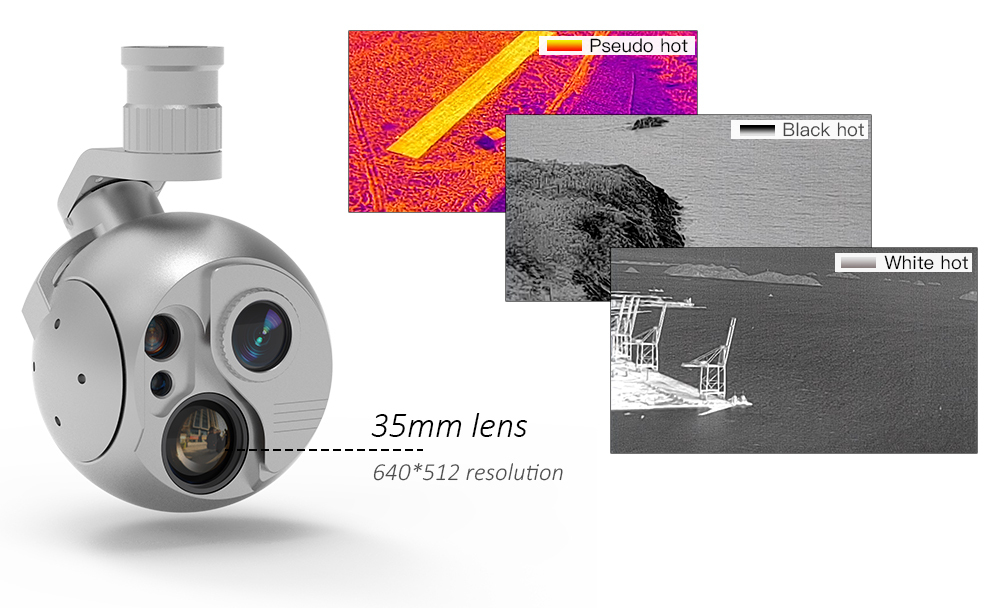

Thermal imager

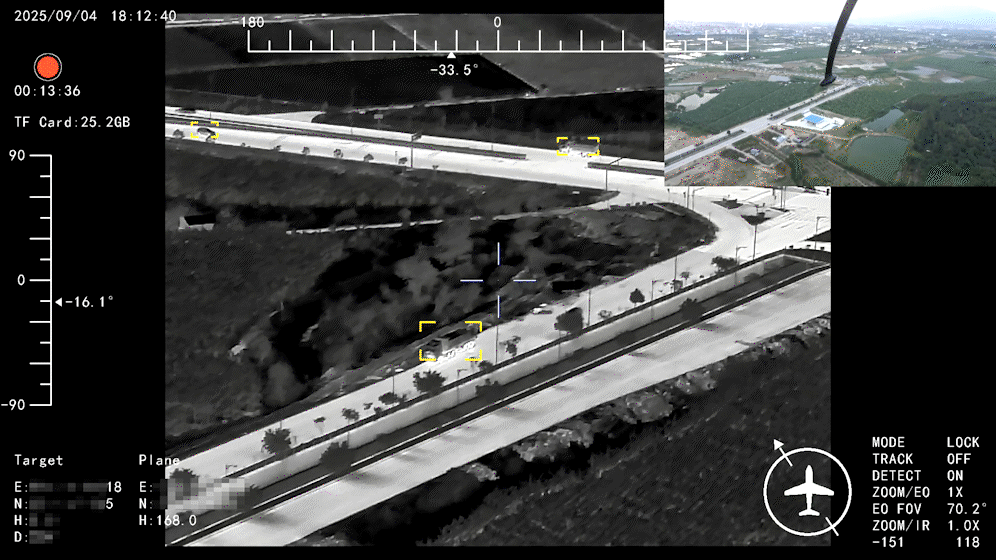

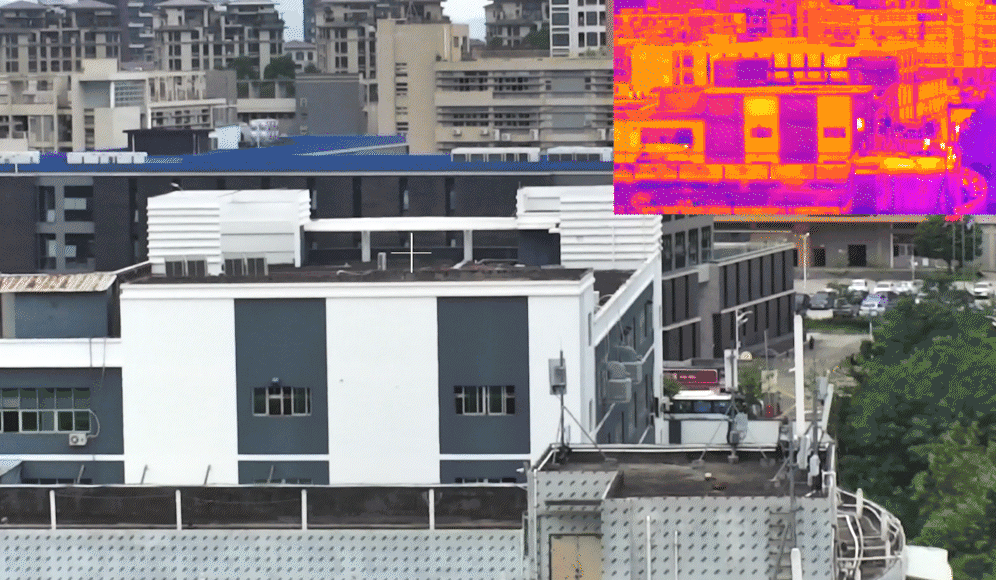

Capture clear thermal images with advanced thermal lens, featuring a 640x512 resolution, 35mm lens, and 25Hz frequency for smooth performance. Choose from 3 color palettes and enjoy enhanced detail with 4x digital zoom, making it perfect for precision monitoring in night time environment.
3-axis gimbal

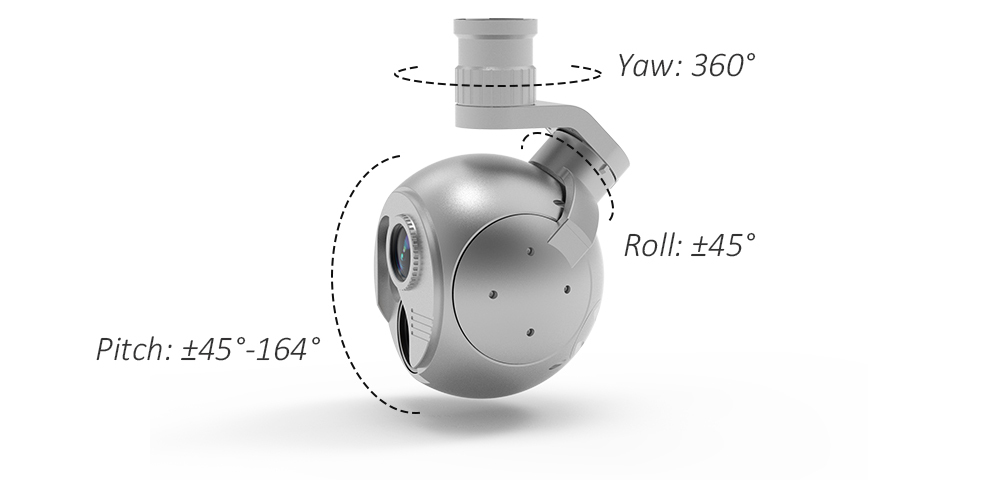

Storm Eye-20IE-MK Camera is equipped with 3-axis gimbal, which allows for a full 360° rotation in the Yaw direction with ±0.02° accuracy, and a pitch range of +45° to -164° with angle jitter of ±0.01°, enabling Storm Eye-20IE-MK camera more precise target tracking capability.

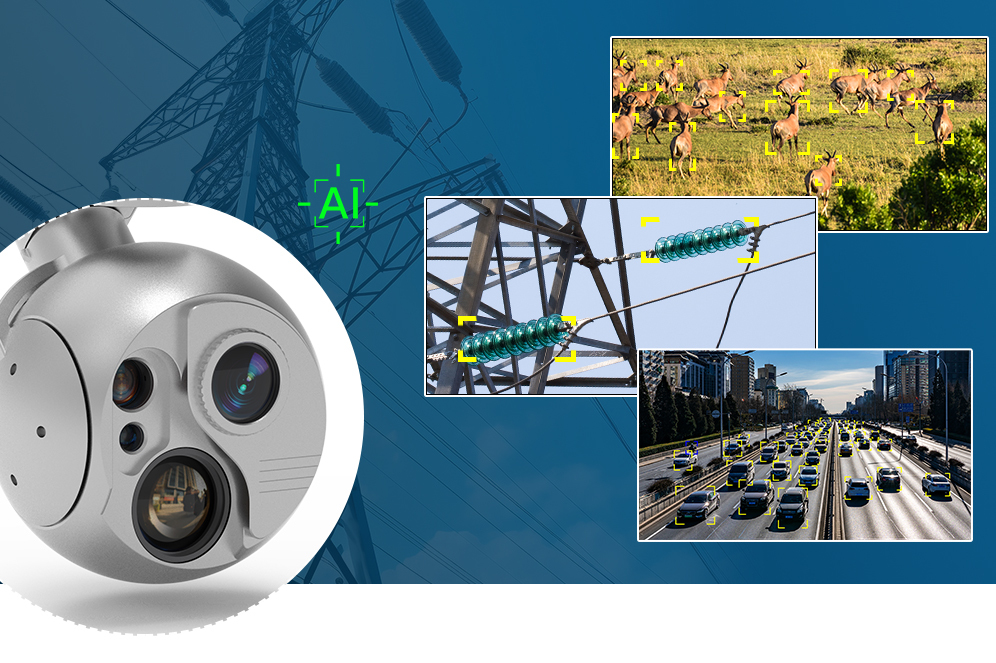

AI recognition and tracking

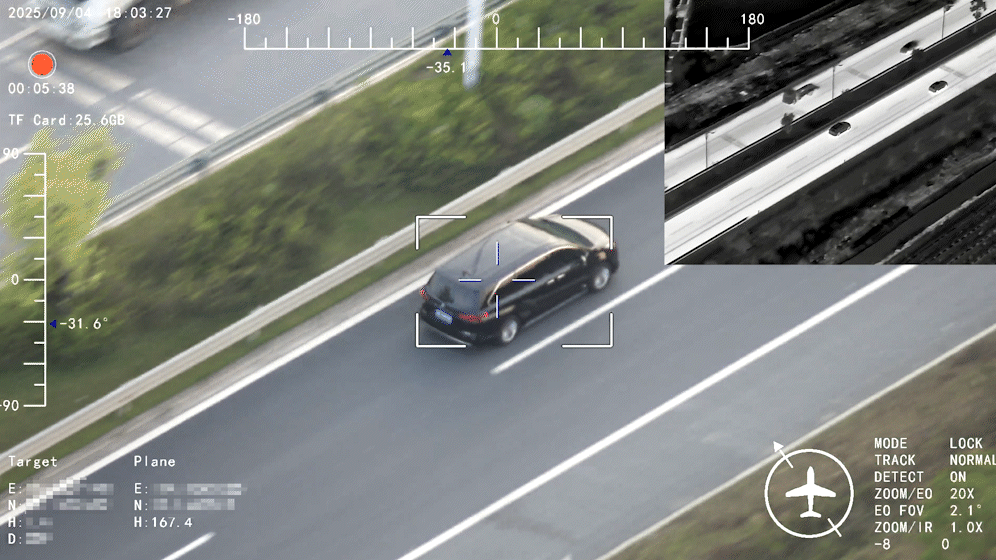

Based on advanced cross-correlation, tracking, and object miss recapturing algorithms, the Storm Eye-20IE-MK camera features AI-powered automatic recognition of people and vehicles. This enables continuous, stable object tracking on both the daylight zoom camera and the thermal imager, ensuring precise surveillance in any environment.
Fly by camera

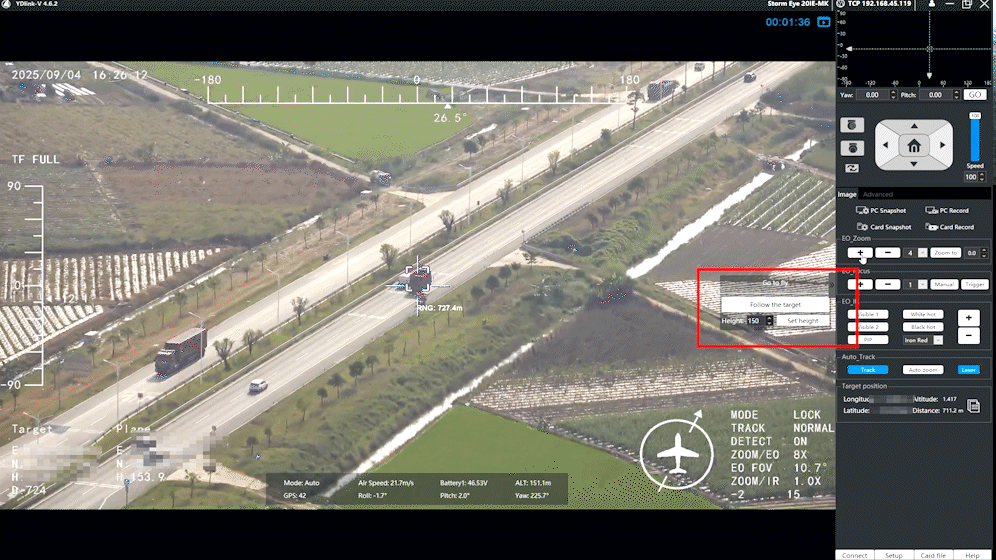

Thanks to the camera's radar rangefinder and real-time integration with the UAV, the Fly by Camera feature enables Yangda drones to autonomously circle around moving objects. This functionality is crucial for applications such as search and rescue, surveillance, and inspection, providing continuous tracking and enhanced operational efficiency in dynamic environments.

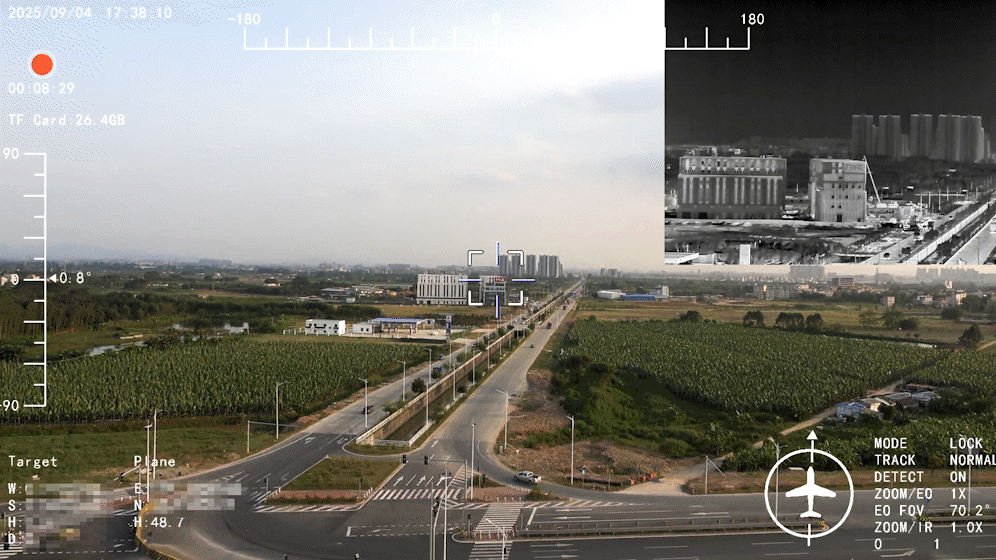

Monitor target movement status via GCS

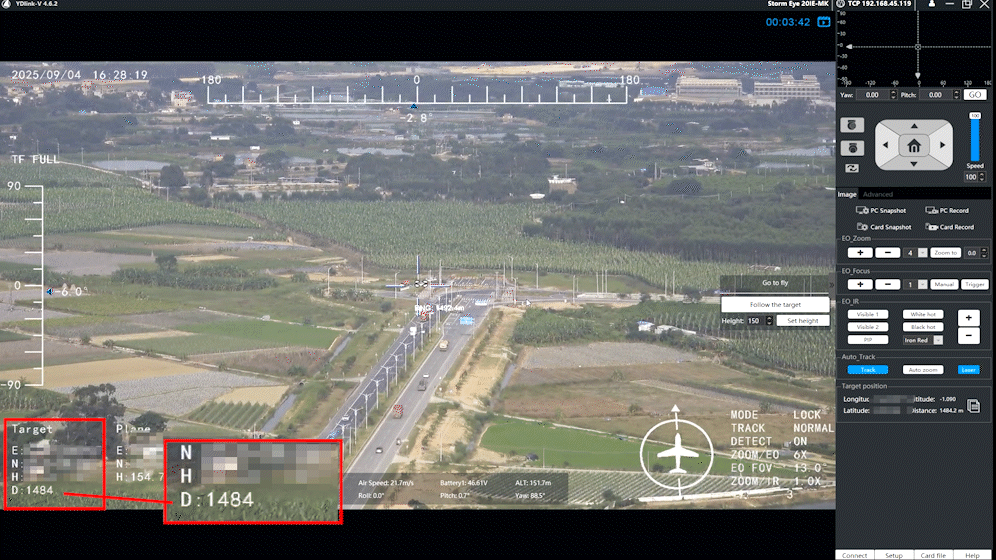

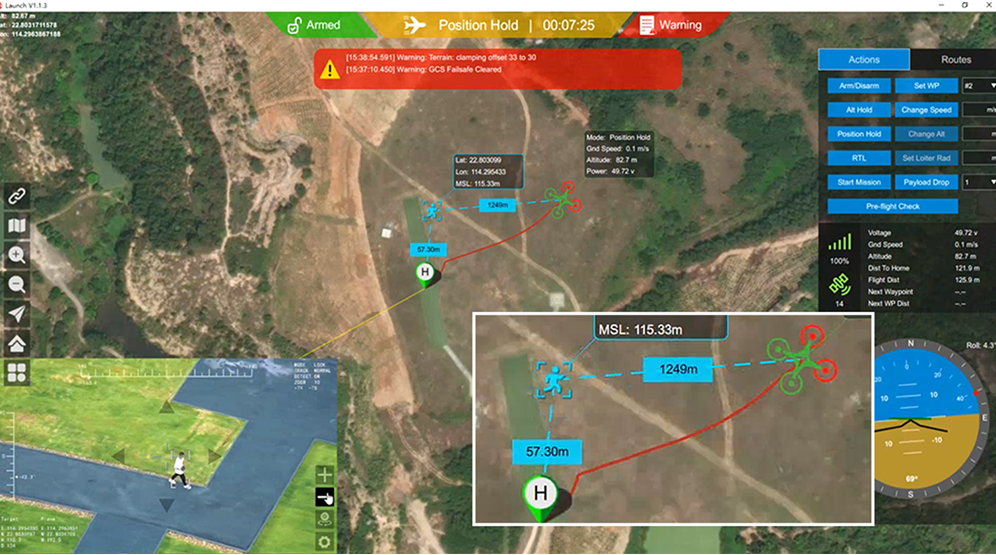

The pilot can use the LAUNCH GCS to monitor the target's movement status, such as real-time updated GPS coordinates, the distance between the target and the drone, as well as the distance between the target and the HOME position.
Fast deploy and simple gimbal control
The 3-axis EO/IR drone gimbal supports YDPORT quick attach and release mechanism, making gimbal installation fast and convenient. Meanwhile, the drone gimbal supports S.bus, TTL serial port, and ethernet. With the help of YDlink gimbal control software, gimbal control is simple and easy.
MAVLINK compatible
Storm Eye-20IE-MK drone gimbal is compatible with drones powered by PX4 and Ardupilot, making integration relatively convenient.
| Gimbal parameters | |
| AI recognition | Vehicles, human (Trainable target recognition) |
| Target tracking | Support |
| Input voltage | 12V |
| Photo format | JPG(1920*1080) |
| Rotation range | Pitch: +45° ~ -164°, Roll: ±45°, Yaw: Unlimited |
| Angle jitter | Pitch and Roll: ± 0.01°, Yaw: ± 0.02 ° |
| Control interface | PWM, S. Bus, Serial commands and Software control via Ethernet |
| Working current | Static current: 650mA (@12V) |
| Dynamic current: 850mA (@12V) | |
| Local storage | TF card (Up to 128G, Category 10, FAT32 or ex FAT format) |
| Mechanical characteristic | |
| Total weight (head and camera) | 1.73kg ± 5g |
| Operating temperature | -10°C ~ +50°C |
| Dimensions | 131.8*136.9*203.5mm |
| Mounting | Screw-type quick disassembly structure |
| 4K HD zoom camera | |
| Sensor | 1/2.3 inch Exmor R CMOS |
| Video output | 4K/1080P 30fps Ethernet |
| Video recording | 1080P/30 MP4 |
| Lens focal length range | 20x Optical zoom, f = 3.9 mm -46.8 mm |
| Pixels | 8.93 million |
| Signal system | 4K: (2160p/29.97, 21609/25) |
| FHD: (1080P/59094, 1080P/50, 1080i/59.94, 1080i/50, 720P/59.94, 720P/50) | |
| Focusing system | Automatic (Sensitivity: normal, low), one-click autofocus, manual, interval autofocus |
| Zoom triggers autofocus and focus compensation when ICR mode is turned on | |
| Minimum illumination (50%, High sensitivity mode on ) |
High sensitivity mode: Color 0.75 lx (F1.8, AGC on, 1/30 s) |
| Normal mode: Color 3 lx(F1.8, AGC on, 1/30 s) | |
| Minimum optical focusing distance (Short focal length to long focal length) | 10mm(Wide-angle) to 1500mm (Long focus) (Default: 300mm) |
| Aperture range | F1.8 (Wide-angle) ~ F2.0 (Long focus) |
| Thermal imager | |
| Lens | 35mm |
| Operating band | Uncooled vanadium oxide long wave (8μm~14μm) |
| Pixels | 640 × 512 |
| Pixel size | 17μm |
| Focusing | Without thermal |
| Field of view | Horizontal: 17.7° |
| Vertical: 13.3° | |
| Diagonal: 22.0° | |
| Detective distance (Human: 1.8×0.5m) | 1029 meters |
| Recognition distance (Human: 1.8×0.5m) | 257 meters |
| Verifcation distance (Human: 1.8×0.5m) | 129 meters |
| Detective distance (Car: 4.2×1.8m) | 3157 meters |
| Recognition distance (Car: 4.2×1.8m) | 789 meters |
| Verifcation distance (Car: 4.2×1.8m) | 395 meters |
| Emissivity correction | The emissivity is adjustable from 0.01 to 1 |
| NETD | ≤50mK(@25℃) |
| MRTD | ≤650mK(@Characteristic frequency） |
| Image enhancement | Automatically adjust image brightness and contrast |
| Color palette | White Hot, Black heat, Pseudo |
| Automatic non-uniformity | Yes (With or without shutter) |
| Correction function | |
| Digital zoom | 1x, 2x, 3x, and 4x |
| Time synchronization | Yes |
| 3000m Laser rangefinder | |
| Measuring distance | Above 3000 meters (Car: 2.3m × 2.3m) |
| Vusubility is not less than 5 kilometers, diffuse reflectance is greater than 0.3, humidity is less than 80% | Over 1500 meters (Human: 1.75m × 0.75m) |
| Over 5000m (Buildings) | |
| Laser wavelength | 1535nm ± 5nm |
| Laser divergence angle | Less than 0.5mrad |
| Continuous measurement frequency | 1~10Hz Adjustable |
| Ranging accuracy | Within ± 2m (RMS) |
| Accuracy rate | Over 98% |
| Minimum range | Less then 20m |
| Ranging resolution | Less then 30m (Multiple targets) |
| Operating temperature | -40℃ ~ +65℃ |
| Storage temperature | -55℃ ~ +70℃ |
